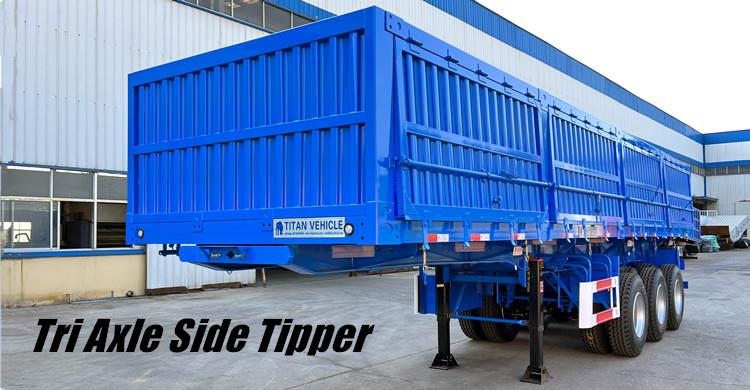

Chapter 2: Tri axle side tipper for sale in Namibia
Chapter 3: How many tons can a side tipper carry?
Chapter 4: The difference between side tipper and back tipper trailer
A side tipper trailer is a type of heavy-duty trailer commonly used in the transportation and construction industries. Side tipper trailer is another type of dump trailer, and it allows goods to be unloaded from the side. It is designed to transport bulk materials such as gravel, sand, coal, and agricultural products.
Unlike traditional trailers that unload from the rear, a side tipper trailer unloads its cargo by tilting or tipping the entire body of the trailer to one side. This allows for quick and efficient unloading of materials in a controlled manner. The trailer is equipped with hydraulic systems that enable it to raise and lower the body, facilitating the tipping process.
Side tipper trailers are often used in situations where there is limited space for maneuvering or unloading at the rear. They are particularly useful in construction sites, mining operations, and agricultural settings where large quantities of materials need to be transported and unloaded efficiently.
In the purchase of a side tipper trailer, it is necessary to pay attention to several key stress points, such as diagonal brace point, suspension plate bar, subframe, etc. At the same time in welders, materials and other aspects are also more particular. In addition, the selection of hydraulic top should also pay attention to. Nowadays, under the condition of standard loading, our factory generally chooses 6 110mm lifting cylinders and a 130mm displacement cylinder for the 13m vehicle length, HYVA brand with more reliable quality.
The quality of the tri axle side tipper for sale is very important to the safety of driving. Therefore, when buying a vehicle, do not try to be cheap. Pay more attention to the structure of the product, workmanship and the quality of parts, so as to choose a more durable trailer.
The most important part of the side tipper trailer for sale is the specifications of the frame, hydraulic system and diagonal brace. When purchasing the side tipper trailer, users must pay attention to the load-bearing capacity of the beam. Try to choose famous brands for the hydraulic jack and pay attention to the diagonal brace. Factory welder and reinforcement.

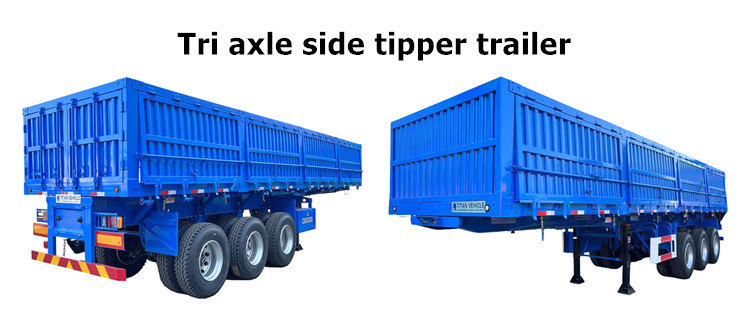

Details of Tri Axle Side Tipper for Sale in Namibia
1. The specifications of the girders
Due to the uneven forces on the dropside side tipper for sale, the higher requirements for the load-carrying capacity of the beam are self-evident. The beam is self-evident for a trailer. For a side tipper trailer, the beam is generally higher than that of a van of the same load. The girders should be larger in size.
On flat roads, there is a subframe, and the force on the girder is the same as that of an ordinary van, but when it rolls over, the force on the girder is uneven.
The cargo that side tipper trailer for sale pulls is generally heavy cargo such as steel, stones, coal, etc., which also requires the high load-bearing capacity of the girders.
2. Diagonal bracing reinforcement is very important and the more fulcrums, the higher the reliability
Diagonal bracing, when it rolls over, most of the weight of the cargo is borne by diagonal bracing. Therefore, the firmness of diagonal bracing is very important. Once the diagonal brace has a problem, it will easily cause a rollover accident.
Of course, the more the better, the more rollover braces, the smaller the force that each pivot can bear, and the higher the reliability. Generally, there are 5 pivots for 13m rollover and 6 for 15m. individual. Pay attention to the rotating bracket at the top of the diagonal brace. The pin should be pulled out when it rolls over. If the design here is unreasonable, it will be easy to pull out if it is bent a little, which will affect the unloading.
Therefore, the reinforcement of the diagonal brace is very important. In the picture above, one support point has 6 channel steel reinforcements. The number of diagonal braces should be reasonable.

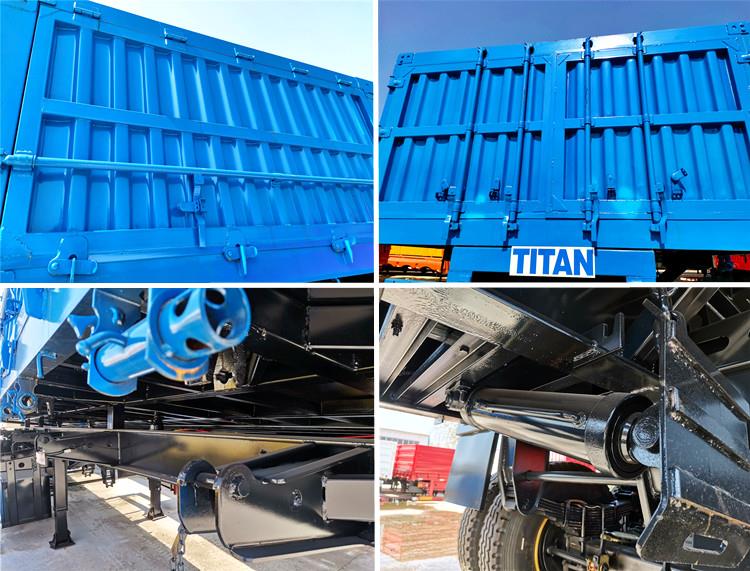

3. The number of hydraulic jacks depends on the tonnage and the support must be firm
The hydraulic jack is an important part of the dropside side tipper for sale. According to the different deadweight tonnage, there are generally several diameters such as 110, 125, 130, 150, etc. The general standard load is not more than 60 tons. 110 5+1 (5 lifts) Lifting cylinder, a displacement cylinder) or 130 5+1; heavy load 80 tons-120 tons generally use 6+1 or 7+1 150 cylinder. The displacement top generally uses 160 or 180 cylinders.
The brand that is used more is Hyva, and the quality and service are better.
The hydraulic roof support carries a large part of the weight of the cargo when it is lifted, and the firmness of the support is very important. The shaft at the joint of the hydraulic jack and the sub-frame should be well protected, otherwise, it is easy to bend.

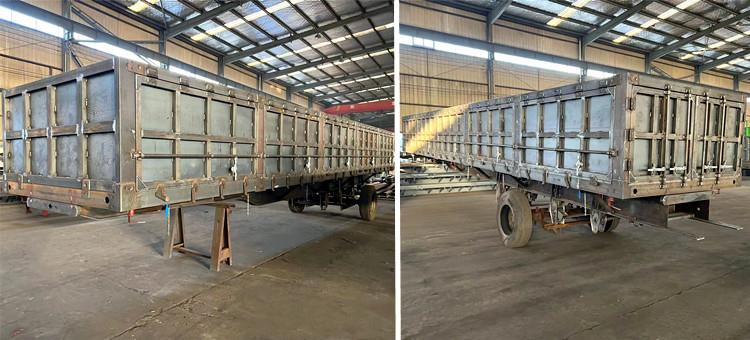

Dropside Side Tipper Trailer in Factory
A side tipper is a type of trailer used in the transportation of bulk materials such as gravel, sand, or agricultural products. The carrying capacity of a side tipper can vary depending on various factors such as its design, size, and legal regulations in different regions.
Generally, side tippers have a large carrying capacity compared to other types of trailers. They are commonly used in industries where high volume transportation is required. The typical carrying capacity of a side tipper can range from 60 to 100 tons or even more. However, it's important to note that local regulations and road limitations may impose weight restrictions on vehicles, so the actual load a side tipper can legally carry may vary based on the specific region and road regulations.
If you require precise information about the carrying capacity of a particular side tipper trailer for sale in Namibia model or want to know about local regulations regarding weight limits, it's best to consult the manufacturer or relevant authorities in your area.
Here are three common side tipper trailer for sale:
3 axle 33cbm side tipper trailer: 60 ton capacity
40cbm tri axle side tipper for sale: 80 ton capacity
3 axle 48cbm dropside side tipper for sale: 100 ton capacity

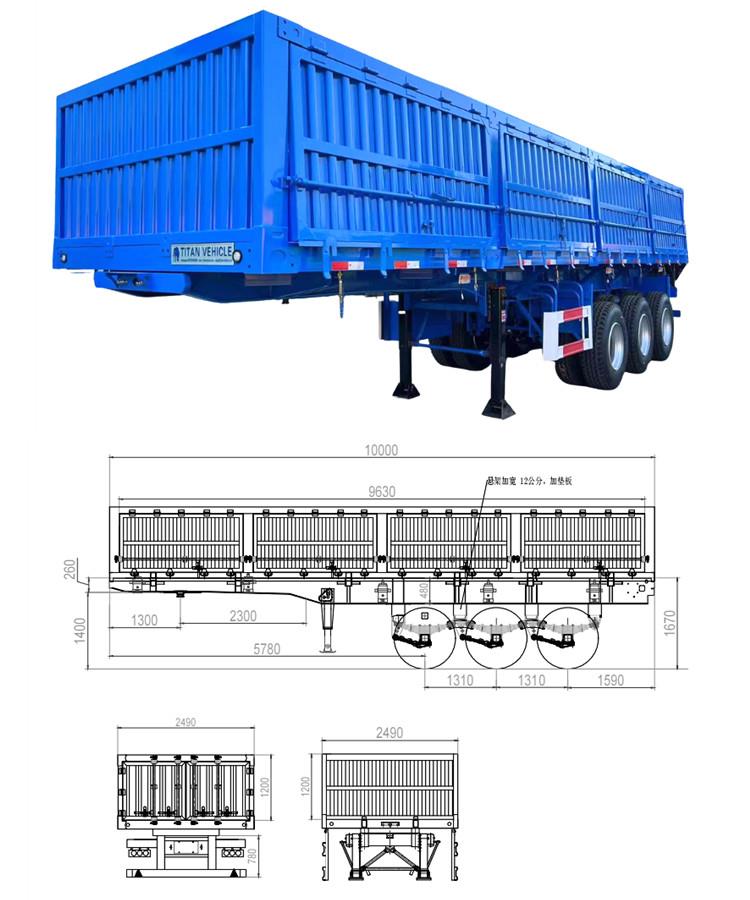

Drawing of Tri Axle Side Tipper Trailer for Sale

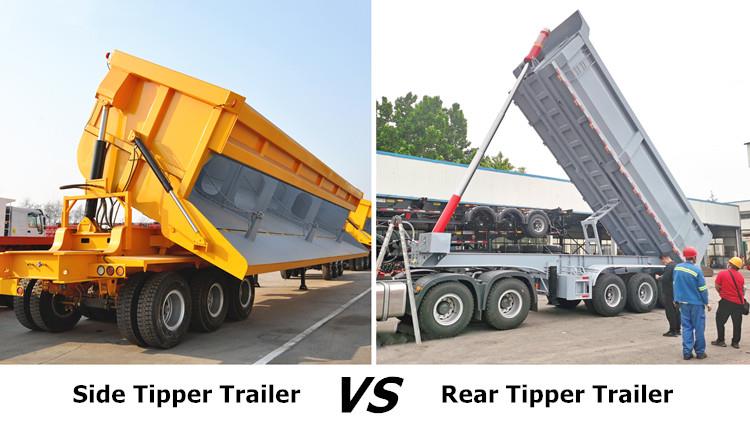

Side tipper and back tipper trailers are two different types of trailers commonly used in the transportation industry. Here is a brief description of each:
Side Tipper Trailer: A side tipper trailer, also known as a side dump trailer or side discharge trailer, is a type of trailer that unloads its cargo by tilting to one side. It is designed with a hydraulic system that allows the trailer to lift its bed on one side, causing the load to slide out through the open side. Side tippers are often used for transporting loose materials such as sand, gravel, or agricultural products. They are particularly useful in situations where access restrictions or uneven terrain make it difficult for back tippers to unload.
Back Tipper Trailer: A back tipper trailer, also referred to as a rear tipper trailer or end dump trailer, unloads its cargo by lifting the front end of the trailer bed and allowing the load to slide out from the back. These trailers are equipped with hydraulic cylinders that raise the front of the trailer, creating an inclined plane for the cargo to slide down. Back tippers are commonly used for transporting bulk materials like construction aggregates, soil, or waste materials. They are widely used in industries such as construction, mining, and waste management.
In summary, the main difference between side tipper and back tipper trailers lies in the direction from which they unload their cargo. Side tippers unload from the side, while back tippers unload from the back. The choice between these trailers depends on factors such as the type of cargo, loading/unloading requirements, and the specific site conditions.
